ADAU1772BCPZ is a professional audio codec commonly used in fields such as audio processing, audio mixing, and audio decoding. It can be widely used in consumer electronics, automotive audio, avionics, professional audio equipment and other fields.
Conclusion:
ADAU1772BCPZ has multiple functions, including ro function, high fidelity digital audio processing, and decoding of multiple digital audio formats. It can achieve functions such as audio input, output, mixing, gain control, audio equalization, multi-channel processing, audio compression and decompression. In addition, it also has advantages such as low noise and low distortion.
Parameters:
Input voltage range: 2.5V~5.5V
Working temperature range: -40 ℃~85 ℃
Low noise: -100dB
Low distortion: 0.0003%
Supports multiple audio formats: PCM, DSD, Dolby Digital, DTS, etc
Supports multi-channel output: 2-channel, 5-channel, 7-channel, etc
Support communication methods such as SPI, I2C, UART, etc.
Product Technical Specifications
| ECCN (US) | EAR99 | | Part Status | Active | | HTS | 8542.39.00.01 | | Automotive | No | | PPAP | No | | Type | General Purpose | | ADC/DAC Resolution (bit) | 24 | | Number of Channels | 4ADC / 2DAC | | Number of ADCs | 4 | | Number of DACs | 2 | | Number of ADC Inputs | 4 | | Number of DAC Outputs | 2 | | Sampling Rate (ksps) | 192 | | Signal to Noise Ratio (dB) | 108 | | Total Harmonic Distortion Plus Noise (THD+N) (dB) | -96 | | Interface Type | Serial (I2C, I2S, SPI) | | Minimum Operating Supply Voltage (V) | 1.045|1.71 | | Typical Operating Supply Voltage (V) | 1.1|1.8 | | Maximum Operating Supply Voltage (V) | 1.98|3.63 | | Power Supply Type | Analog|Digital | | Maximum Power Dissipation (mW) | 15.5(Typ) | | Minimum Operating Temperature (°C) | -40 | | Maximum Operating Temperature (°C) | 85 | | Packaging | Tray | | Mounting | Surface Mount | | Package Height | 0.73 | | Package Width | 6 | | Package Length | 6 | | PCB changed | 40 | | Standard Package Name | CSP | | Supplier Package | LFCSP EP | | Pin Count | 40 | | Lead Shape | No Lead |
|
|
|
|
|
|
|
Product Tags:
|
|

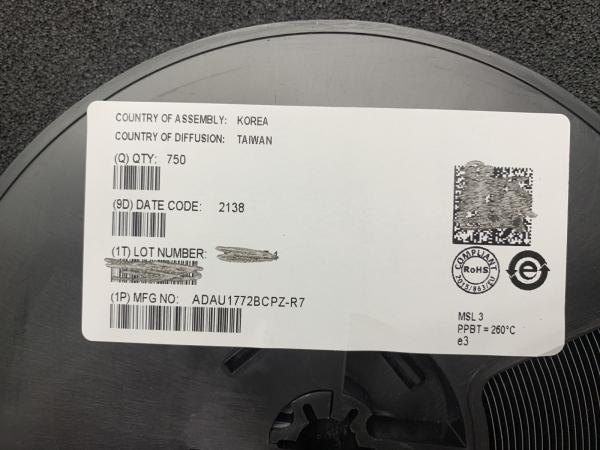

ADAU1772BCPZ Analog Devices Chip LFCSP40 Images
|
